17608 – DESOI AirPower L36-3C VA

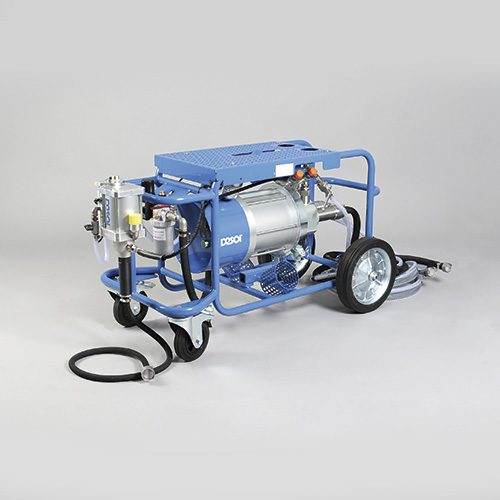

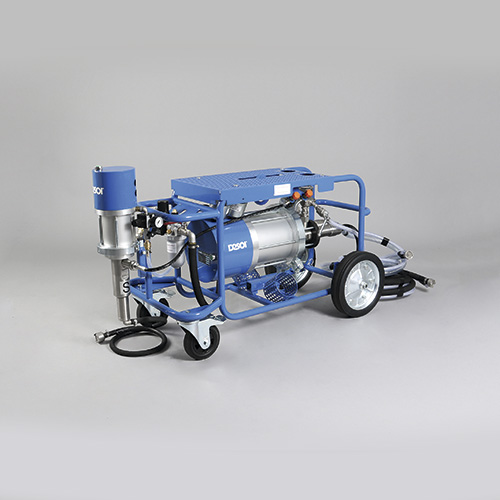

The reciprocating pump DESOI AirPower L36-3C VA achieves a delivery of max. 20 l/min at a mixing ratio of 1 : 1. Due to the big valves and pistons also highly viscous material can be used without any problems. All material conducting parts are made of stainless steel. The pump is equipped with a separate rinsing pump. The result is a very maintenance-friendly machine including suitable accessories.
Datos técnicos
Working pressure – infinitely variable 5 – 200 bar
Delivery rate max. 20 l/min
Air consumption 2.5 m3/min
Transmission ratio 1 : 25
Mixing ratio 1 : 1
Air pressure max. 8 bar
Weight 100 kg
L x W x H 127 x 57 x 64 cm
Rising pump type S25
- Working pressure – infinitely variable 7 – 200 bar
- Delivery 5,1 l/min
- Transmission ratio 1 : 28
Delivery range
Moving device with wheel set, suction system, 2 x manometer 0 – 400 bar, rinsing pump type S25, incl. instruction manual, No. 16875: HP material hose – stainless steel (Ø 10 mm, 10 m long, union nuts G3/8″, solvent resistant, component B), No. 16876: HP material hose – stainless steel (Ø 10 mm, 10 m long, union nuts G1/2″, solvent resistant, component A), No. 16813: HP material hose – stainless steel (Ø 6 mm, 10 m long, union nuts M12x1.5, solvent resistant), No. 17714-12: 3C mixing head – stainless steel (3 x HP ball valve, 3 x check valve, mixing tube steel with 12 x inline static mixer, whip 0.3 m long, sliding coupling straight with free passage Ø 2.5 mm; material hose connections: component A: G1/2″; component B: G3/8″;
flush connection: M12x1.5)
Ventajas

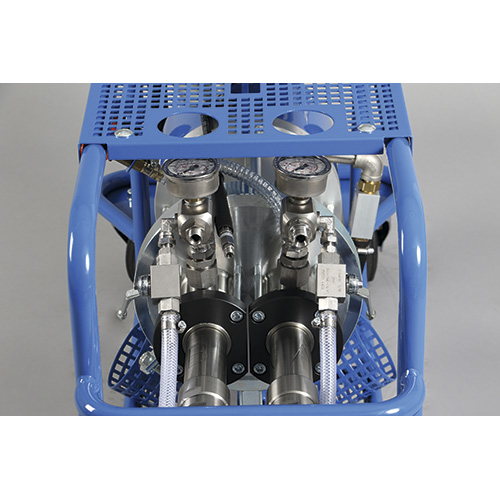

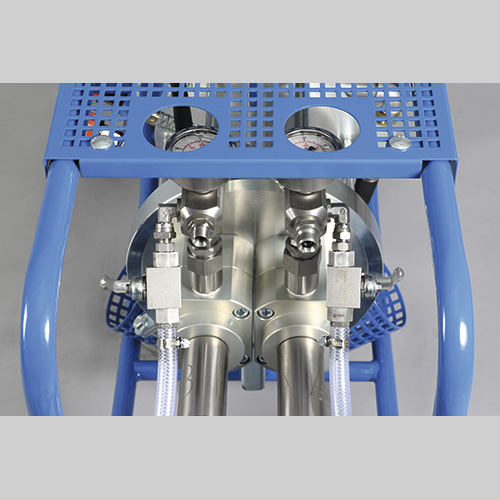

- Manometers at machine outlet for pressure control of each components
- Big material passage – suitable also for highly viscous material
- Adjustment of the material volume
Material que se puede aplicar
- 2 component injection resin

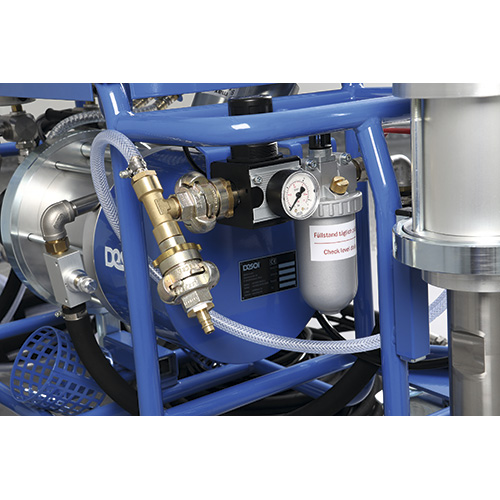

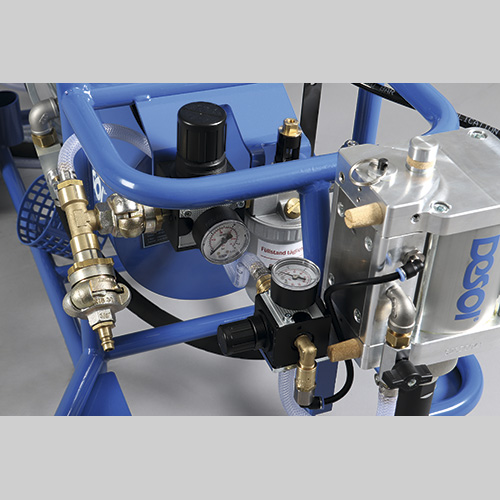

- Pressure regulator with manometer and anti-freeze device
- Manometer combination with suction hose
- 17714-12
