17607 - DESOI AirPower L36-2C VA

17607 – DESOI AirPower L36-2C VA

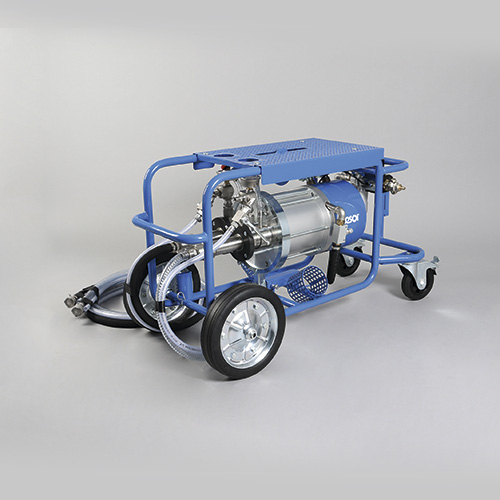

The reciprocating pump DESOI AirPower L36-2C VA achieves a delivery of max. 20 l/min at a mixing ratio of 1 : 1. Due to the big valves and pistons also highly viscous material can be used without any problems. The result is a very maintenance-friendly machine including suitable accessories.

Datos técnicos

Working pressure – infinitely variable            5 – 200 bar
Delivery rate   max. 20 l/min
Air consumption         2.5 m³/min
Transmission ratio       1 : 25
Mixing ratio    1 : 1
Air pressure     max. 8 bar
Weight 92 kg
L x W x H       110 x 55 x 65 cm

 Rango de entrega

Moving device with wheel set, suction system, 2x manometer 0 – 400 bar, incl. instruction manual, No. 16875: HP material hose – stainless steel (Ø 10 mm, 10 m long, union nuts G3/8″, solvent resistant, component B), No. 16876: HP material hose – stainless steel (Ø 10 mm, 10 m long, union nuts G1/2″, solvent resistant, component A), No. 17815-12: 2C mixing head – stainless steel (2 x HP ball valve, 2 x check valve, mixing tube with 12 x inline static mixer, whip 0.3 m long, sliding coupling straight with free passage Ø 2.5 mm, material hose connections: component A: G1/2″; component B: G3/8″)

Ventajas

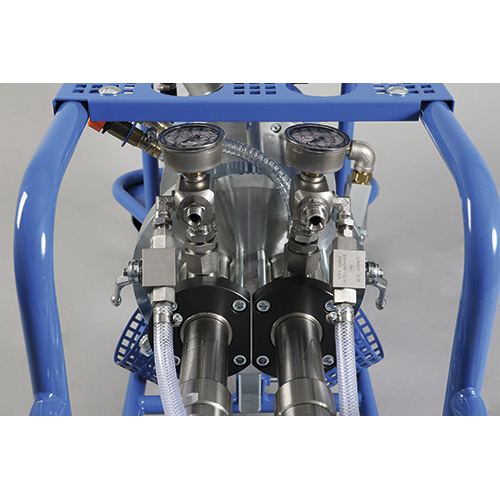

• Manometers at machine outlet for pressure control of each components
• Big material passage – suitable also for highly viscous material
• Adjustment of the material volume
• Can be equipped with DESOI Flow Control (electronic recording system)

Material que se puede aplicar

• 2 component injection resin

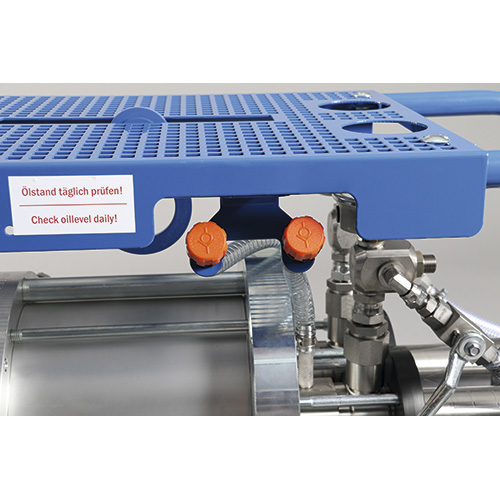

• Lubrification
• Manometer combination

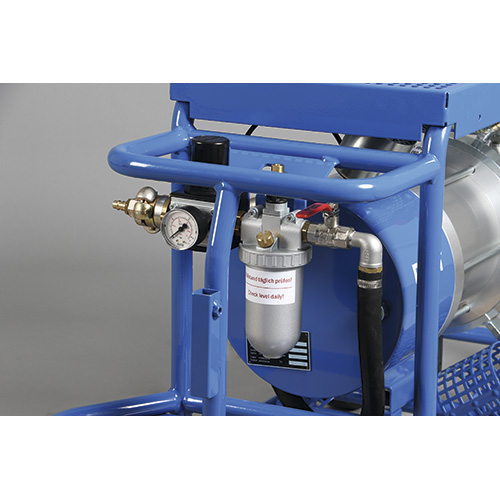

• Pressure regulator with manometer and anti-freeze device

16875, 16876

17815-12
