17606 - DESOI AirPower L36-2C

17606 – DESOI AirPower L36-2C

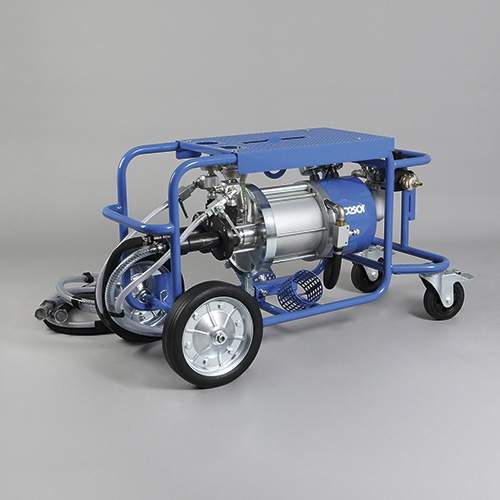

The reciprocating pump DESOI AirPower L36-2C achieves a delivery of max. 20 l/min at a mixing ratio of 1:1. Due to the big valves and pistons also highly viscous material can be used without any problems. The result is a very maintenance-friendly machine including suitable accessories.

Datos técnicos

Working pressure – infinitely variable            5 – 200 bar
Delivery rate   max. 20 l/min
Air consumption         2.5 m³/min
Transmission ratio       1:25
Mixing ratio    1:1
Air pressure     max. 8 bar
Weight 92 kg
L x W x H       110 x 55 x 65 cm

Rango de entrega

Moving device with wheel set, suction system, 2 x manometer 0 – 400 bar, incl. instruction manual, No. 16865: HP material hose – steel (Ø 10 mm, 10 m long, union nuts G3/8″, solvent resistant, component B), No. 16866: HP material hose – steel (Ø 10 mm, 10 m long, union nuts G1/2″, solvent resistant, component A), No. 17812-12: 2C mixing head – steel (2 x HP ball valve, 2 x check valve stainless steel, mixing tube with 12 x inline static mixer, whip 0.3 m long, sliding coupling with free passage Ø 2.5 mm, material hose connections: component A: G1/2″, component B: G3/8″)

Ventajas

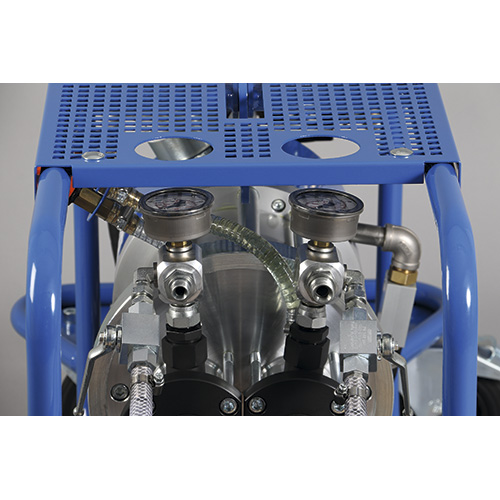

• Manometers at machine outlet for pressure control of each components
• Big material passage – suitable also for highly viscous material
• Adjustment of the material volume
• Can be equipped with DESOI Flow Control (electronic recording system)

Material que se puede aplicar

• 2 component injection resin
• Manometer combination

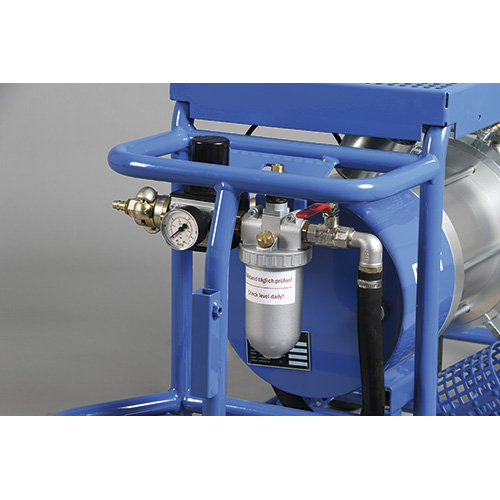

• Pressure regulator with manometer and anti-freeze device

 16865, 16866
17812-12

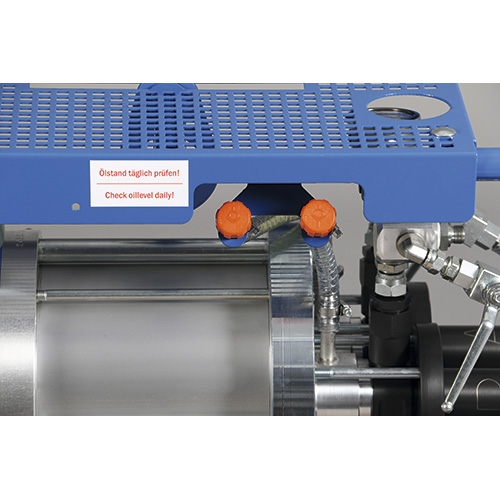

Lubrification
