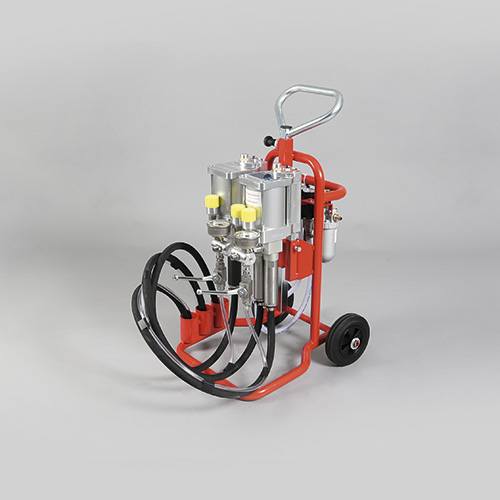

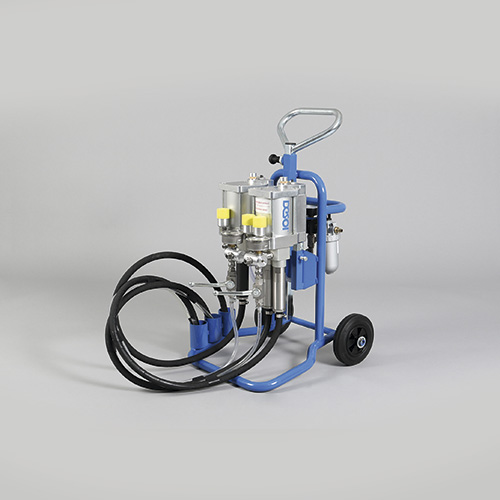

17602 - DESOI AirPower S25-3C VA
17602 – DESOI AirPower S25-3C VA
The reciprocating pump is equipped with a forced control. The material is delivered at a mixing ratio of 1:1. The big and exact operating valves provide high flow rate and high mixing accuracy. DESOI AirPower S25-3C VA including suitable accessories is easy to maintain and low wearing. All material conducting parts are made of stainless steel.
Datos técnicos
Working pressure – infinitely variable 10 – 100 bar
Delivery rate max. 8 l/min
Air consumption 1 m3/min
Air pressure max. 8 bar
Transmission ratio 1:13
Air consumption and delivery rate at 100 bar back pressure (injection pressure)
Air consumption 83 l/min Delivery rate 0,5 l/min
Air consumption 166 l/min Delivery rate 1 l/min
Air consumption 342 l/min Delivery rate 2 l/min
Air consumption 433 l/min Delivery rate 3 l/min
Mixing ratio 1:1
Weight 29.3 kg
L x W x H 78 x 39 x 80 cm
Rinsing pump
- Working pressure – infinitely variable 7 – 220 bar
- Delivery rate 5.1 l/min
- Transmission ratio 1:28
Delivery range
Moving device, suction system, 2 x pressure gauge unit with manometer 0 – 250 bar, rinsing pump S25, incl. instruction manual, No. 16813: HP material hose – stainless steel (Ø 6 mm, 10 m long, union nuts M12x1.5, solvent resistant), No. 16860: HP material hose – stainless steel (Ø 6 mm, 10 m long, union nuts M14x1.5, solvent resistent, component B), No. 16861: HP material hose – stainless steel (Ø 6 mm, 10 m long, union nuts M16x1.5, solvent resistent, component A), No. 17764: 3C mixing head – stainless steel (2 x HP ball valve, 2 x HP ball valve steel, 2 x non-return valve, mix block with 2 x inline static mixer, whip 0.3 mm long, sliding coupling straight with free passage Ø 2,5 mm; material hose connections: component A: M16x1.5; component B: M14x1.5; flush connection: M12x1.5)
Ventajas
- Solid mixing ratio 1:1 – no errors by users
- Big material passage
- Easy maintenance and repair
Material que se puede aplicar
- Acrylate gel

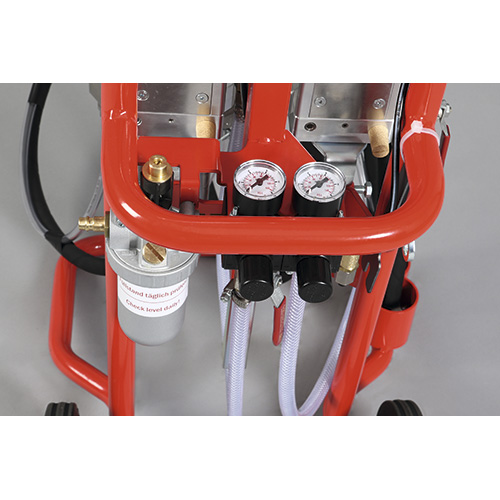

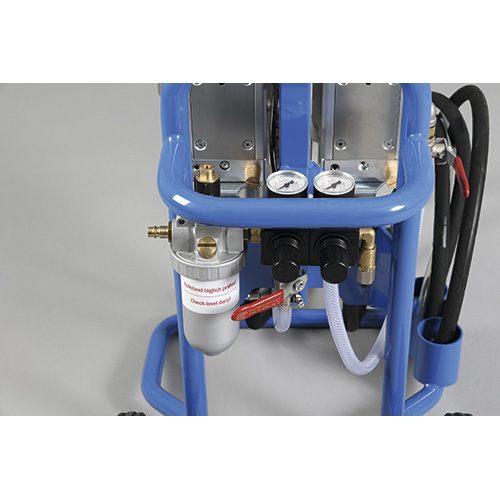

- Pressure regulator with manometer and anti-freeze device

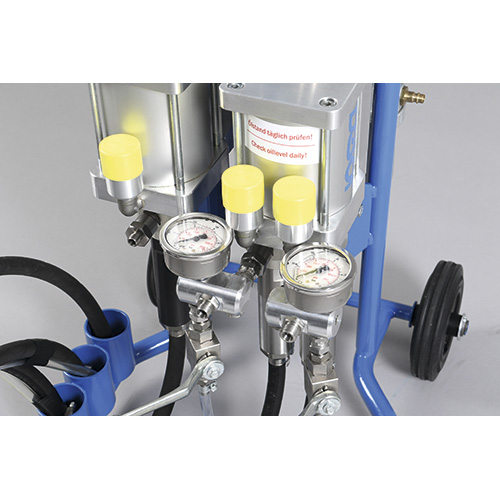

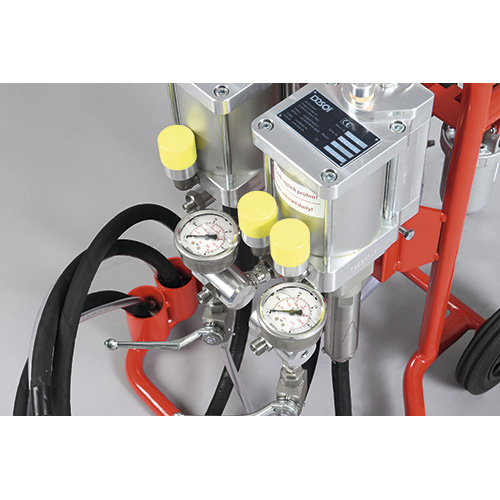

- Manometer combination and oil lubrication
- 16813, 16860, 16861
