17601 - DESOI AirPower S25-2C

17601 – DESOI AirPower S25-2C

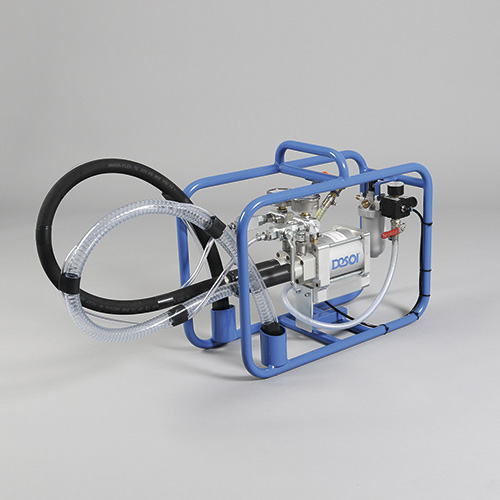

The pneumatic reciprocating pump DESOI AirPower S25-2C combines high capacity with compact design. Due to the directly mounted seals on the piston, retensioning is not necessary. The result is a very maintenance-friendly machine including suitable accessories.

Datos técnicos

Working pressure – infinitely variable            10 – 100 bar
Delivery rate   max. 7.6 l/min
Air consumption         1 m3/min
Air pressure     max. 8 bar
Transmission ratio       1:13
Air consumption and delivery rate at 100 bar back pressure (injection pressure)
Air consumption 75 l/min       Delivery rate 0,5 l/min
Air consumption 133 l/min     Delivery rate 1 l/min
Air consumption 283 l/min     Delivery rate 2 l/min
Air consumption 391 l/min     Delivery rate 3 l/min
Mixing ratio    1:1

Weight             20.2 kg

L x W x H       58 x 24 x 46 cm

 Rango de entrega

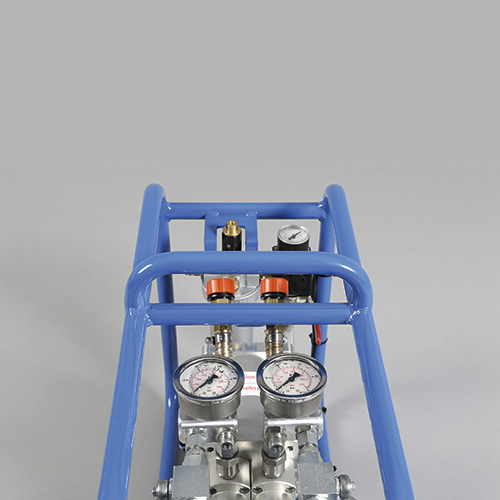

Moving device, carrying handle, suction system, 2 x manometer 0 – 250 bar, incl. instruction manual, No. 16870: HP material hose – steel (Ø 6 mm, 10 m long, union nuts M14x1.5, solvent-resistant, B-component), No. 16871: HP material hose – steel (Ø 6 mm, 10 m long, union nuts M16x1.5, solvent-resistant, A-component), No. 17625-08: 2C mixing head – steel (2 x HP ball valve, 2 x check valve – stainless steel, mixing tube with 8 x inline static mixer, whip 0.3 m long, sliding coupling straight with free passage Ø 2.5 mm, material hose connections: component A: M16x1.5, component B: M14x1.5)



Ventajas

  • Solid mixing ratio 1:1 – no errors by users

  • Big material passage – highly viscous material can be used

  • No risk of injuries caused by the tension spring seal

  • Easy maintenance and repair

Material que se puede aplicar

  • 2 component injection resin

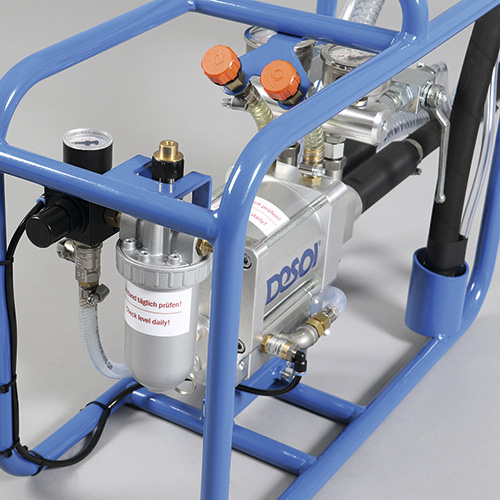

  • Pressure regulator with manometer and anti-freeze device

  • Manometer combination and oil lubrication

    16870, 16871

    17625-08
