17565 – DESOI AirPower XL50-2C

The reciprocating pump DESOI AirPower XL50-2C achieves a delivery of max. 25 l/min at a mixing ratio of 1:1. Due to the big valves and pistons also highly viscous material can be used without any problems.

Datos técnicos

  • Working pressure – infinitely variable            20 – 140 bar
  • Delivery rate   max. 25 l/min
  • Air consumption         2.5 m3/min
  • Pressure ratio   1 : 20
  • Mixing ratio    1 : 1
  • Air pressure     max. 7 bar
  • Weight 105 kg
  • L x W x H       110 x 55 x 65 cm

 Rango de entrega

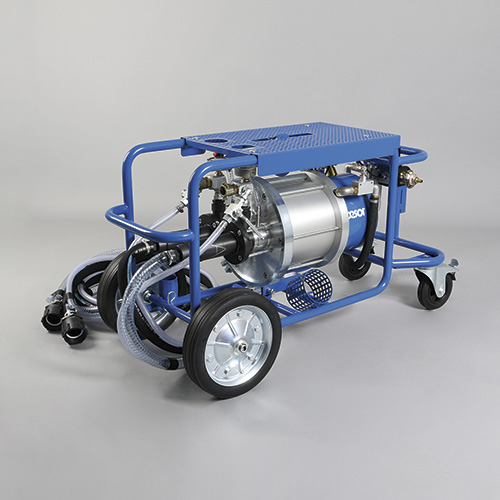

Moving device with wheel set, suction system, 2 x manometer 0 – 400 bar, incl. instruction manual



Ventajas

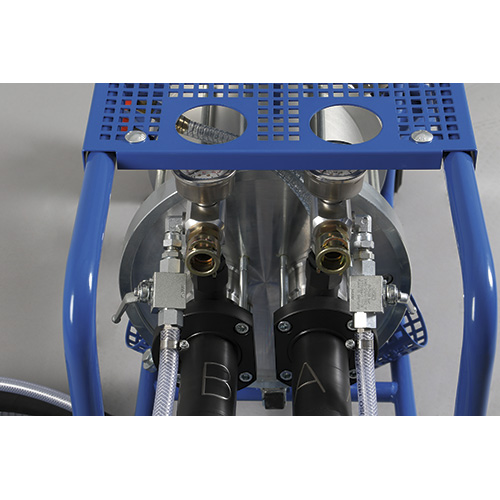

  • Manometers at machine outlet for pressure control of each component
  • Big material passage – suitable also for highly viscous material
  • Adjustment of the material volume
  • Can be equipped with DESOI Flow Control (electronic recording system)

Material que se puede aplicar

  • 2 component injection resin

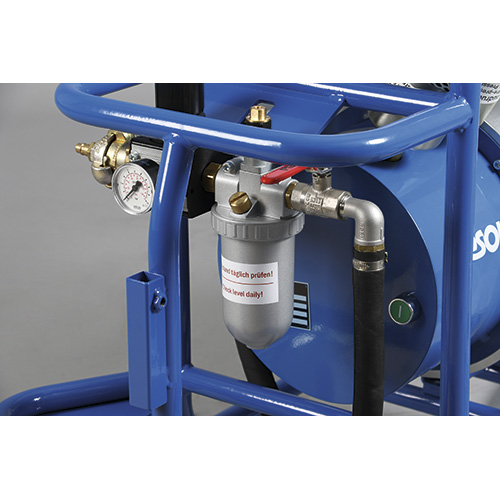

  • Pressure regulator with manometer and anti-freeze device

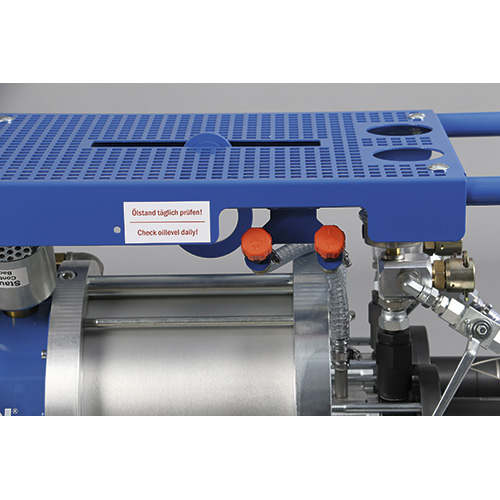

  • Lubrification
