15756 - DESOI PowerInject 303 110V

Bombas de inyección

15756 – DESOI PowerInject 303 110V

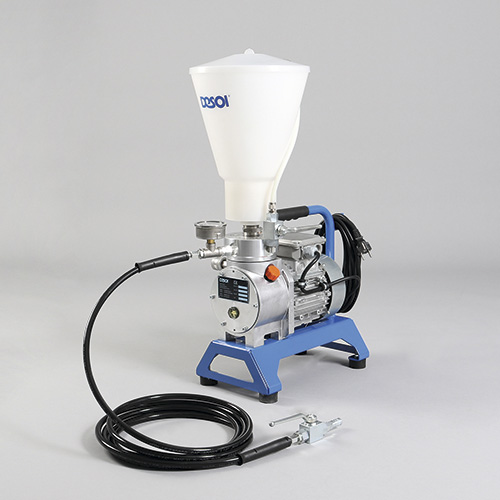

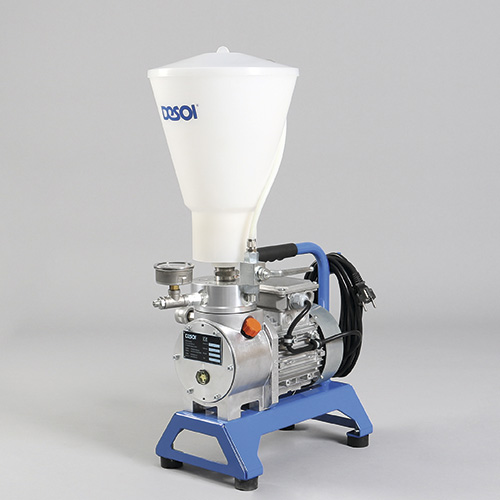

The compact, robust and powerful membrane pump DESOI PowerInject 303 110V is designed for the professional service on site. The special feature of the membrane pump is the large surface of the membrane and the large dimensions of the suction valve that makes the suction of highly viscous material easier. The pump is equipped with a return hose with ball valve which relieves the pressure in the the pump and the material hose.

Datos técnicos

Supply            110 V/60 Hz

Motor power   0.37 kW

Working pressure-infinitely variable  5 – 200 bar

Delivery range             max. 1.9 l/min

Weight            22 kg

L x W x H       58 x 28 x 75 cm

 Rango de entrega

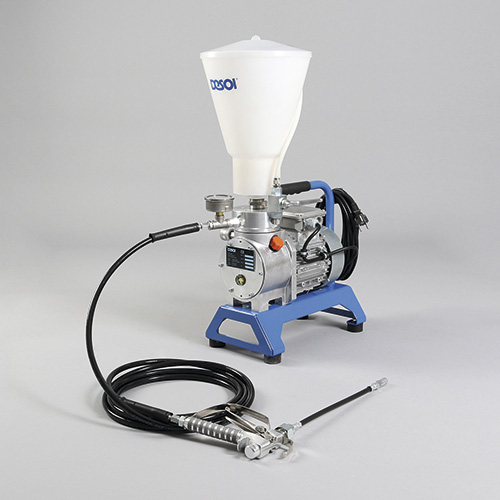

Manometer 0 – 250 bar, 6 litre material container transparent with scale and cover, incl. instruction manual, No. 16803: HP material hose – steel (Ø 6 mm, 5 m long, union nuts M12x1.5, solvent resistant), No. 16733: HP injection gun (external thread M12x1.5, whip 0.3 m, 0 – 250 bar, mouth piece)



Ventajas:

  • Big membrane area – low wearing
  • Exact adjustment of pressure
  • Big material passages – high delivery
  • Valve technique – also suitable for highly viscous material
  • Can also be used for spraying

 Material a utilizar

  • Epoxy resin
  • Polyurethane
  • Quick-foaming polyurethane
  • Aqueous solution

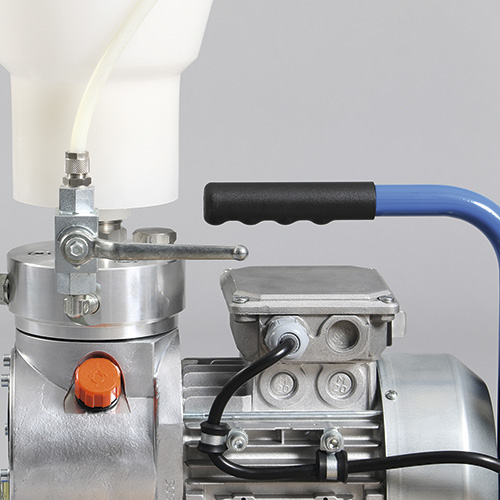

Return hose with ball valve

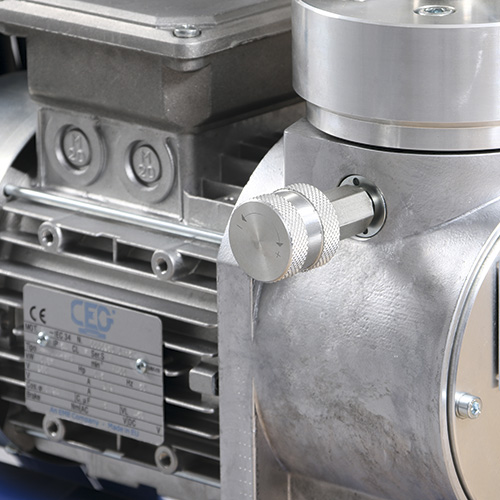

Pressure regulating valve
