15746 - DESOI PowerInject 303 GO
Bombas de inyección15746 – DESOI PowerInject 303 GO

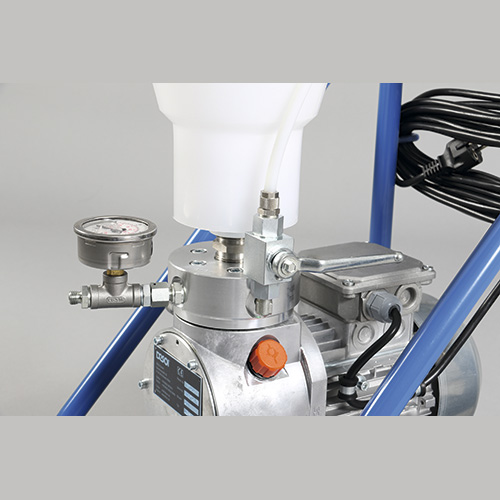

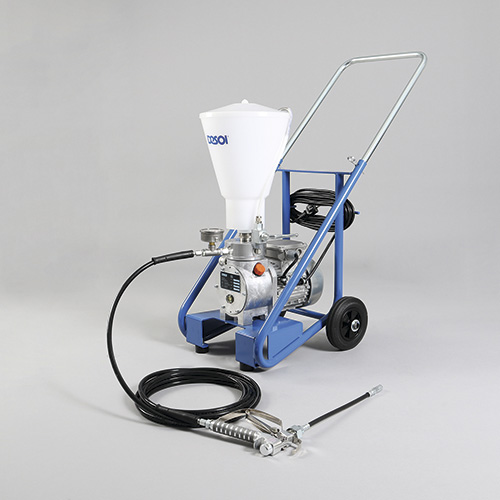

The compact, robust and powerful membrane pump DESOI PowerInject 303 GO is designed for the professional service on site. The special feature of the membrane pump is the large surface of the membrane and the large dimensions of the suction valve that makes the suction of highly viscous material easier. The pump is equipped with a return hose with ball valve which relieves the pressure in the the pump and the material hose.
Datos técnicos
Supply 230 V/50 Hz
Motor power 0.37 kW
Working pressure – infinitely variable 5 – 200 bar
Delivery rate max. 1.9 l/min
Weight 23 kg
L x W x H 75 x 40 x 50 cm
Rango de entrega
moving device, manometer 0 – 250 bar, 6 litre material container transparent with scale and cover, No. 16803: HP material hose – steel (Ø 6 mm, 5 m long, union nuts M12x1.5, solvent resistant) No. 16733: HP injection gun (external thread M12x1.5, whip 0.3 m, 0 – 250 bar, mouth piece), incl. instruction manual
Ventajas
- Big membrane area – low wearing
- Exact adjustment of pressure
- Big material passages – high delivery
- Valve technique – also suitable for highly viscous material
- Can also be used for spraying
Material to be used
- Epoxy resin
- Polyurethane Quick-foaming polyurethane Aqueous solution

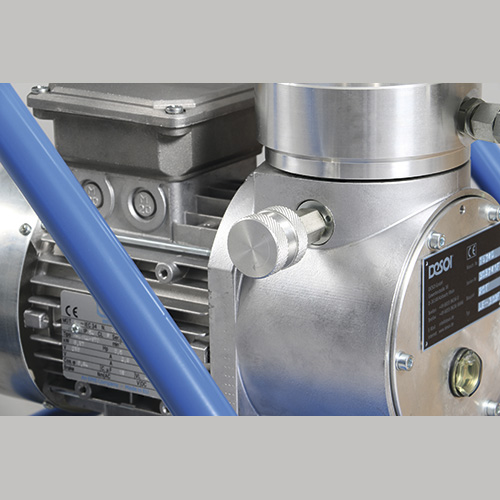

Pressure regulating valve
Working position
