13580 – DESOI PowerInject SP20 110V

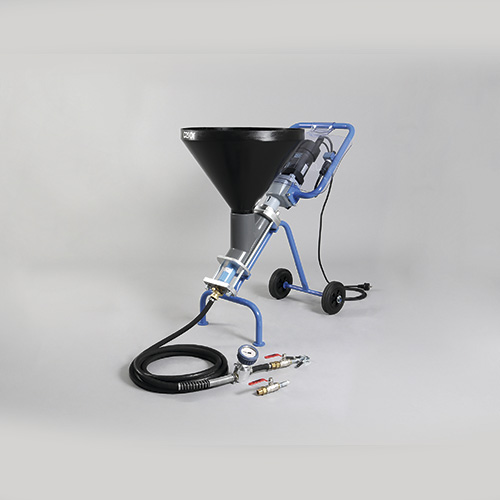

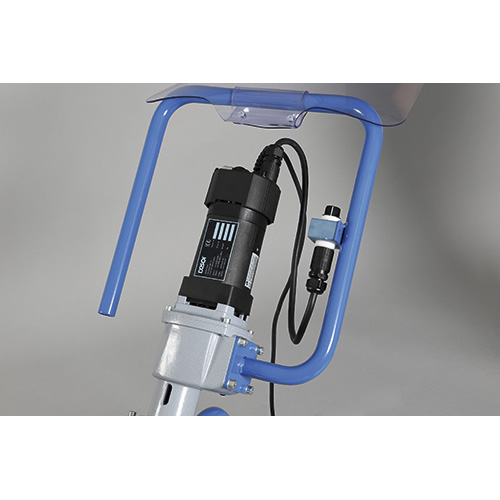

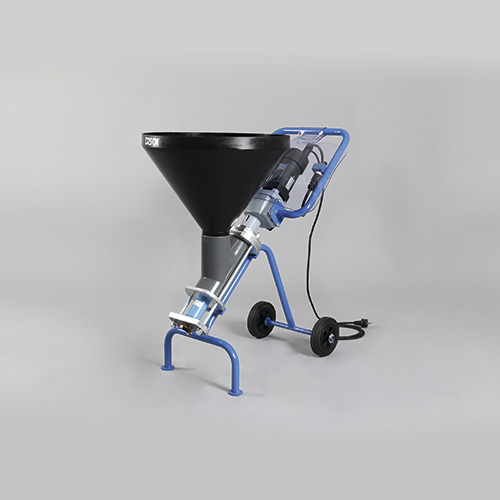

Screw pump DESOI PowerInject SP20 110V is of multiple use and features high power combined with compact design. With the delivery control the pump can be controlled continuously from standstill to maximum speed. As an option the delivery control can be fixed with an extension cord directly at the end of the material hose so that the operator can react immediately to avoid that the material gets under pressure.

Datos técnicos

Supply            110 V/50 – 60 Hz
Motor power   1.8 kW
Working pressure        max. 15 bar
Delivery – infinitely variable   0 – 13.5 l/min
Filling height   90 cm
Grain size        max. 3 mm
Weight 26 kg
L x W x H       80 x 52 x 90 cm

 Rango de entrega

 Moving device, 30 litre plastic material container, splash guard, rotor, stator, infinitely variable delivery control, incl. instruction manual, No. 11403: Quick snap (LP ball valve R1/2″, 5 m material hose Ø 13 mm with Geka coupling lock-type, pressure gauge unit with manometer 0 – 40 bar, free passage Ø 9 mm, spring protection against buckling), No. 21232: LP ball valve R1/2″ (max. 40 bar, mouth piece, detachable double nipple R1/2″)


  • Big material passages – high flow rate
  • Cone-shaped material container – self-emptying

Material que se puede aplicar

  • Injection mortar
  • Cement paste
  • Cement suspension
  • Aqueous solution
  • Machine usable jointing mortar
  • Sealing slurries
  • Fine filler
  • Lime cement plaster
  • Infinitely variable delivery rate regulation
