13533 – DESOI PowerInject SP14

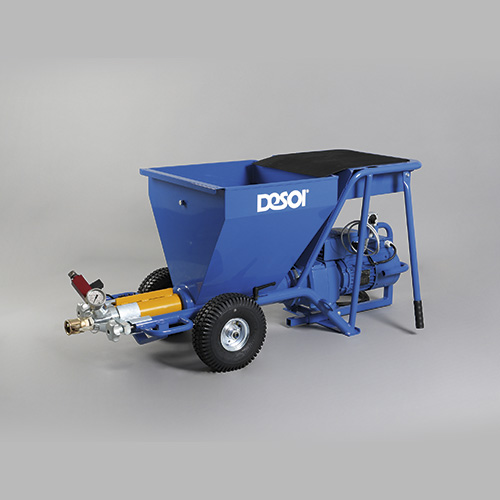

The versatile spiral pump DESOI PowerInject SP14 processes material up to grain size 8 mm. By the manometric switch at the machine outlet the injection pressure is infinitely variable. With the remote control the delivery can be controlled continuously from stop to maximum.

Datos técnicos

  • Supply            400 V/16 A
  • Motor power   4 kW
  • Grain size        max. 8 mm
  • Filling height   68 cm
  • Weight            157 kg
  • L x W x H       163 x 75 x 71 cm
  • Rotor/stator – violet1      Working pressure* infinitely variable 68 bar
  • Delivery rate* infinitely variable        0 – 14 l/min
  • Rotor/stator – red2 Working pressure* infinitely variable       65 bar
  • Delivery rate* infinitely variable        0 – 11l/min
  • Rotor/stator – yellow3 Working pressure* infinitely variable             25 bar
  • Delivery rate* infinitely variable        0 – 30 l/min
  • *max. working pressure and delivery acc. to VDMA 24284

 Rango de entrega

Moving device, 80 litre material container, rotor (yellow), stator (yellow), automatic stator puller, remote control with continuous delivery control, pressure gauge unit with manometer 0 – 100 bar and manometric switch, connection material hose mortar coupling type 35, 1 sprayer of silicone, incl. instruction manual



Ventajas

  • Big material passages – high flow rate
  • Material container empties nearly completely
  • Easy operation and cleaning

Material que se puede aplicar

  • Fine filler 1 2
  • Sealing slurries 1
  • Quartz-based primer 3
  • Restoration render 3
  • Sacrificial plaster 3
  • Injection mortar 1 2 3
  • Cement paste 1 2 3
  • Cement suspension 1 2 3
  • Aqueous solution 1 2

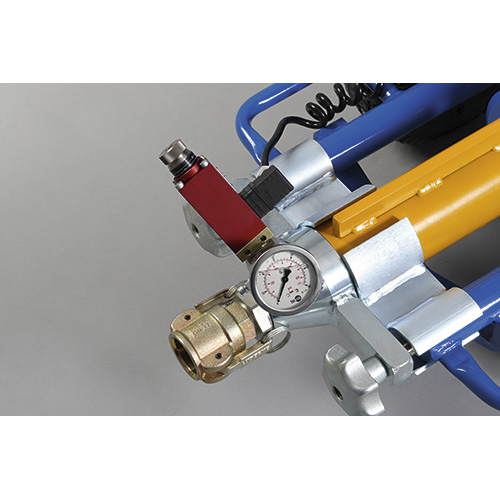

Manometric switch with manometer

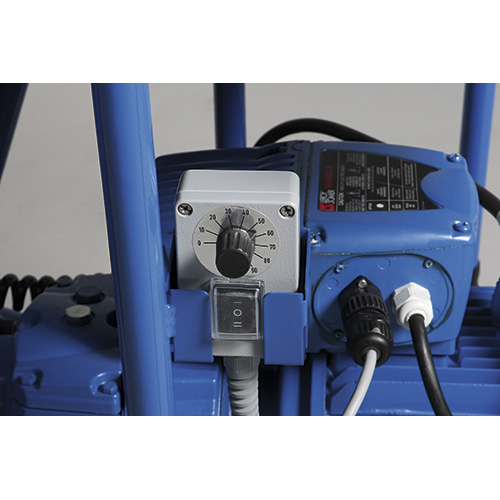

Remote control with continuous delivery control
