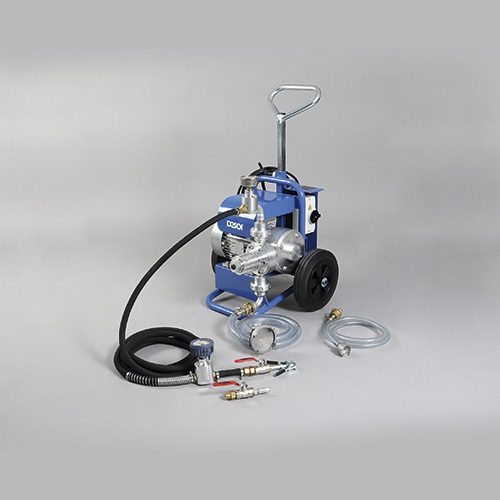

10440 - DESOI PowerInject MB

10440 – DESOI PowerInject MB

The compact and powerful membrane pump DESOI PowerInject MB can be used for refilling of voids, creation of horizontal water barriers, masonry stabilisation and crack injection. The working pressure is infinitely variable from 2 – 20 bar. The ready-mixed material is sucked directly out of the mixing container.

Datos técnicos



  • Supply            230 V
  • Motor power   1.5 kW
  • Working pressure – infinitely variable            2 – 20 bar
  • Delivery rate   max. 8 l/min
  • Grain size        max. 0.3 mm
  • Weight             55 kg
  • L x W x H       55 x 55 x 68 cm

Delivery range

Moving device, 2 x suction system, socket wrench AF41, hook wrench 68 – 75 mm, incl. instruction manual, No. 11402: Quick snap (LP ball valve R1/2″, 5 m material hose Ø 13 mm with detachable double nipple R1/2″, pressure gauge unit with manometer 0 – 40 bar, free passage Ø 9 mm, spring protection against buckling), No. 21232: LP ball valve R1/2″ (max. 40 bar, mouth piece, detachable double nipple R1/2″)



Ventajas

  • Pressure control infinitely variable
  • Exchangeable suction systems
  • Big material passages – high flow rate
  • Easy operation and cleaning

Material que se puede aplicar

  • Injection mortar
  • Cement paste
  • Cement suspension
  • Aqueous solution

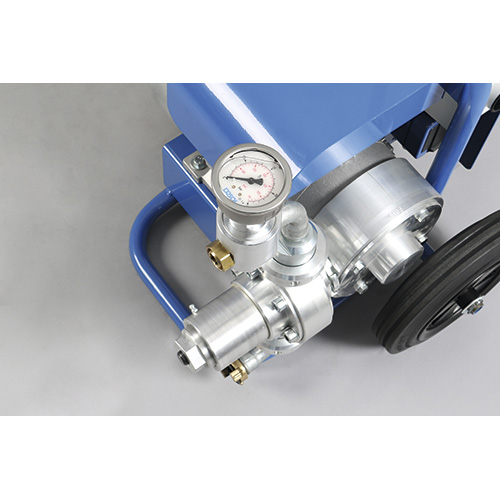

  • Pressure gauge unit with manometer
